Code 107LB
Vertical Check valve by ONSPA
Vertical Check valve by ONSPA
MATERIAL:
Body: Brass with trimming
Sealing system: Brass with teflon gasket

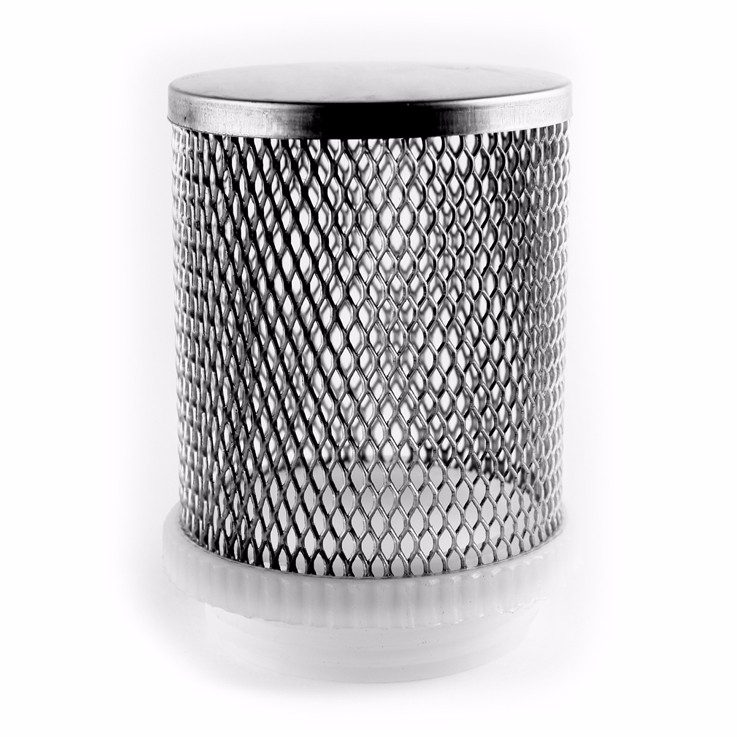

Filter: SUS304 with POM
Sealing system: Brass with teflon gasket
Filter: SUS304 with POM
SPECFICATION:
Wall thickness: ≥ 2mm
Threading: G1/2" , G3/4" , G 1"
Temp Resist: 0°C ≤ TEMP.(°C) ≤ 60°C
Pressure Resist: ≤ 16 kg/cm² or 1.6MPa
Working medium: Water, Non-corrosive liquid
Pipe thread: ISO228
Threading: G1/2" , G3/4" , G 1"
Temp Resist: 0°C ≤ TEMP.(°C) ≤ 60°C
Pressure Resist: ≤ 16 kg/cm² or 1.6MPa
Working medium: Water, Non-corrosive liquid
Pipe thread: ISO228
-
Buy online LOGO
Special Feature:
- 100% No Leaking with Teflon gasket
- Best install for end of water system
- Trimming outfit
