Code 101CTP010

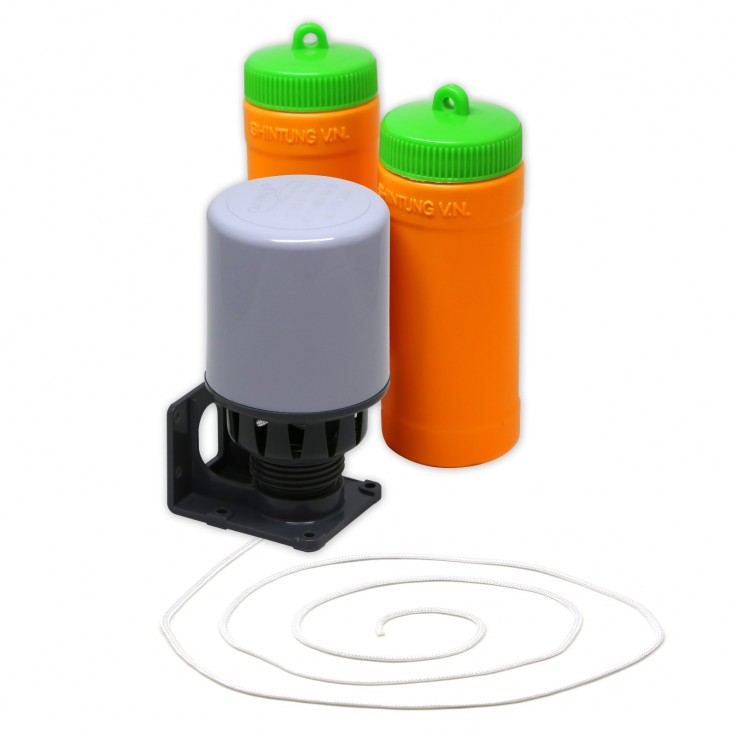

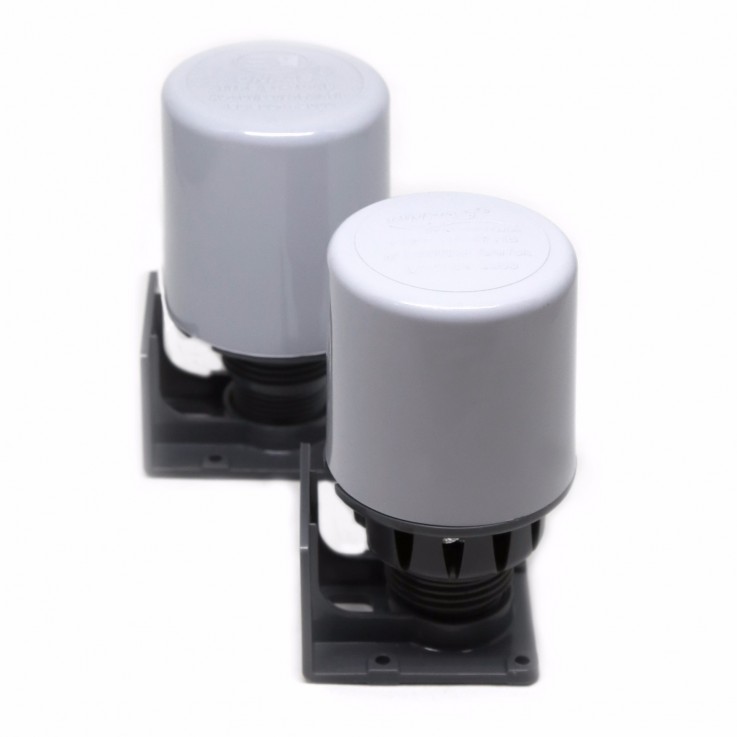

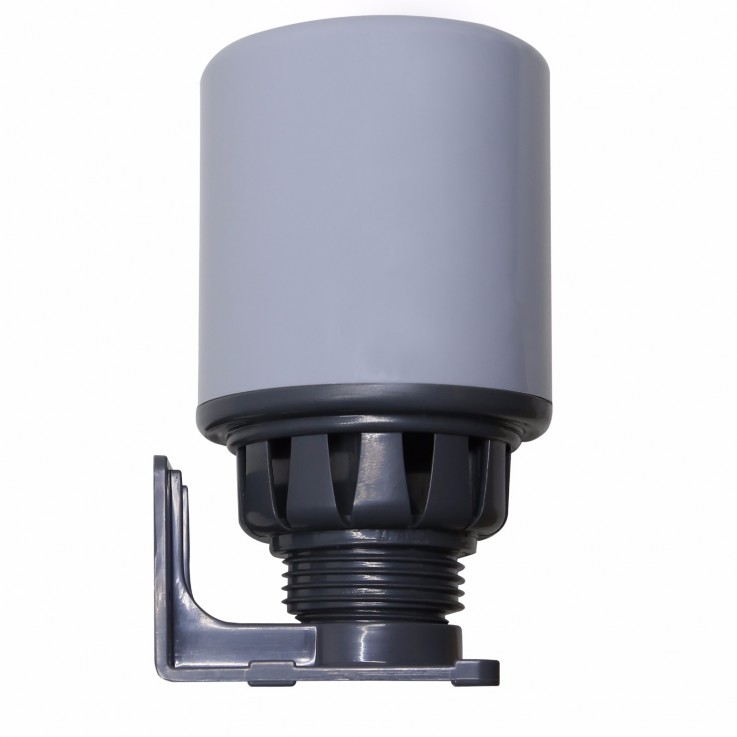

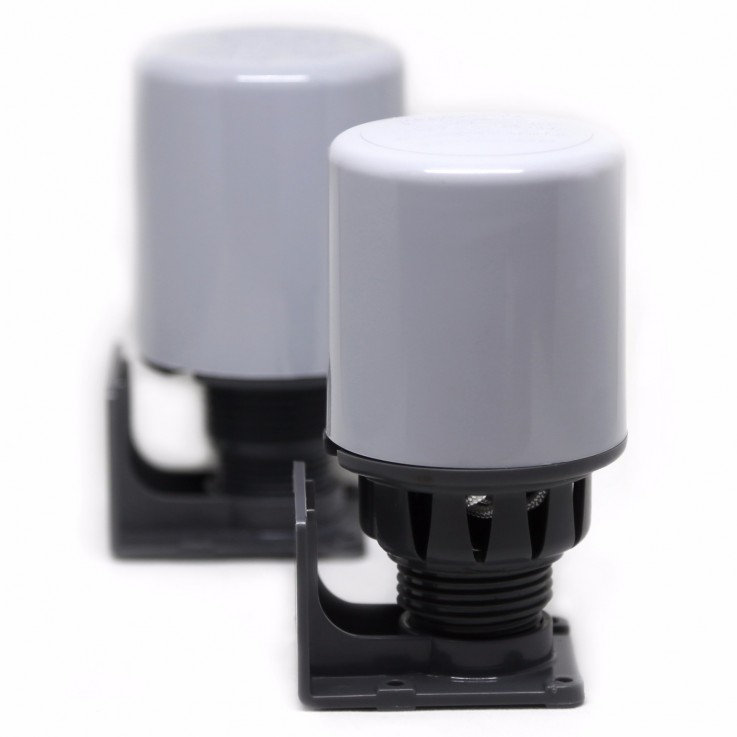

Liquid level control switch ST70-AB 13
Liquid level control switch ST70-AB 13
MATERIAL:
Cover: PP
Guider pipe: ABS
L-Shape support: ABS
Floater cover: ABS
Floater: HDPE
Pin: POM
Switch body: PF
Switch: Brass, Silver, Steel and Bronze
Guider pipe: ABS
L-Shape support: ABS
Floater cover: ABS
Floater: HDPE
Pin: POM
Switch body: PF
Switch: Brass, Silver, Steel and Bronze
SPECFICATION:
Power supply: 110 / 220V, 15A / 7.5A
Connection: G 3/4" and G 1"
Mounting: Vertical installation
Control Range: 0.2 - 5.0 M
Temperature range(°C): 5° - 60°
Max. Pump Power: 2.0HP
Cycle time: 100,000 times
Protection grade: IPS23CS
Connection: G 3/4" and G 1"
Mounting: Vertical installation
Control Range: 0.2 - 5.0 M
Temperature range(°C): 5° - 60°
Max. Pump Power: 2.0HP
Cycle time: 100,000 times
Protection grade: IPS23CS
-
Buy online LOGO

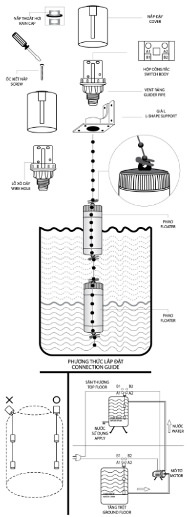

* Link of Installation guide Video
Special Feature:

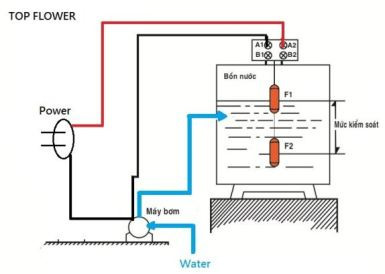

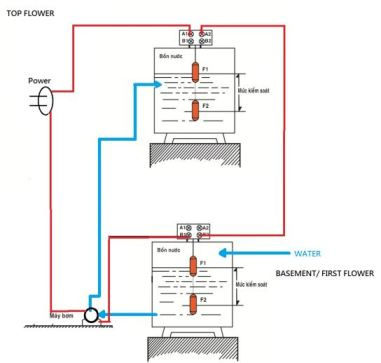

- For both Sump and Pump liquid
- Silver plated electrical Connection
- Electrical Connection part made in Taiwan
- Re-fillable Floater
- Ventilation system
