Code 107BN0132

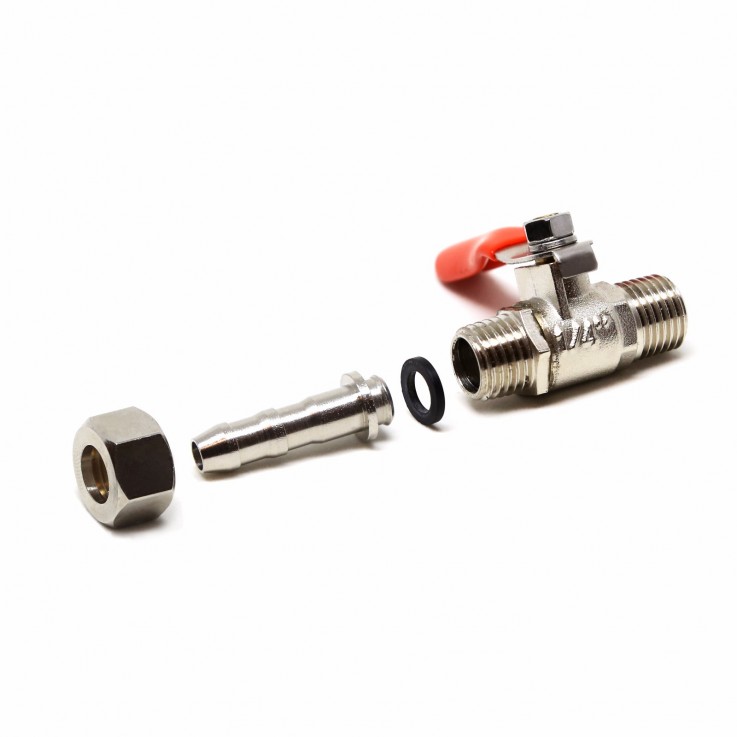

Small brass ball valve with tail by ONSPA
Small brass ball valve with tail by ONSPA
MATERIAL:
Handle: SUS304
Body: Brass
Tail: Brass with Nickel plating
Sealing system: Teflon
Ball: Brass with Nickel plating
Flat washer: EPDM
Body: Brass
Tail: Brass with Nickel plating
Sealing system: Teflon
Ball: Brass with Nickel plating
Flat washer: EPDM
SPECFICATION:
Threading: G1/4"
Temp Resist: 5°C ≤ TEMP.(°C) ≤ 55°C

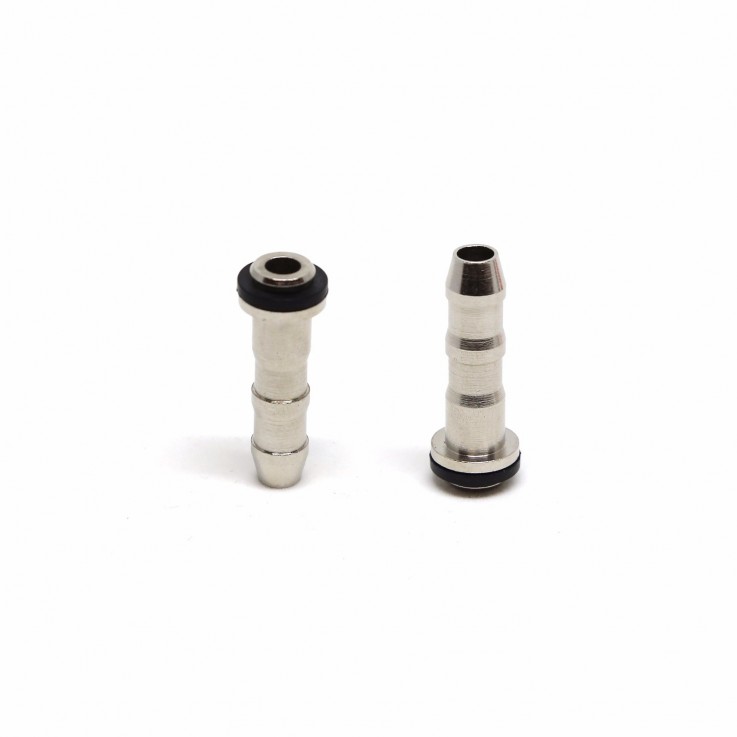

Tail size: Ø 7.5 mm
Suddenly Pressure Resist: ≤ 10 kg/cm²
Nominal Pressure Resist: ≤ 5 kg/cm²
Working medium: Water, Non-corrosive liquid
Pipe Thread: ISO228
Temp Resist: 5°C ≤ TEMP.(°C) ≤ 55°C
Tail size: Ø 7.5 mm
Suddenly Pressure Resist: ≤ 10 kg/cm²
Nominal Pressure Resist: ≤ 5 kg/cm²
Working medium: Water, Non-corrosive liquid
Pipe Thread: ISO228
-
Buy online LOGO
Special Feature:
- Good for RO system
- Small size
